Name: Bridge Studios
Address: 2400 Boundary Road, 2400 Boundary Road, Burnaby, BC, V5M 3Z3, Canada, BC, V5M 3Z3
Telephone: 1-604-482-2000

Stage 2 - SPECS

NOTES

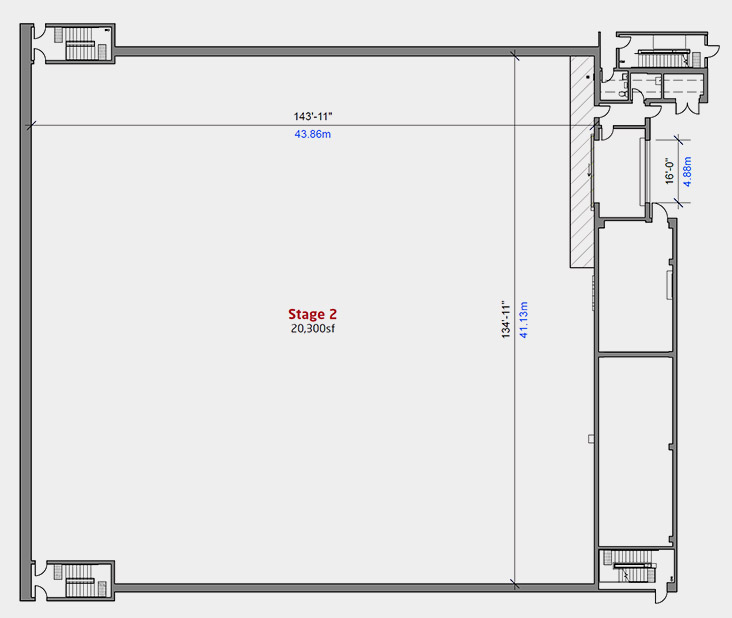

20,300sf (1886.77ms)
50′-6.5″ floor to roof truss
Loading Bay Doors 20’h x 16’w
Heated and air conditioned with a 40 ton capacity unit.
Soundstage walls are isolated and fully blanketed with sound absorbing materials.
Concrete roof has sound absorbing material sprayed onto the ceiling.
5/8″ wood OBS sheets bolted to laser flat concrete floor to provide set anchoring and additional soundproofing.
3 x 400 amp camlock disconnects, 1 on the studio floor, 2 in the adjoining Dimmer Room. Additional power is available.
200 Amp electrical plug-in hook-ups for Base Camp trailers throughout the site.
LED lighting in soundstages and throughout the facility.
Slab Design Load = 300 lbs/sf

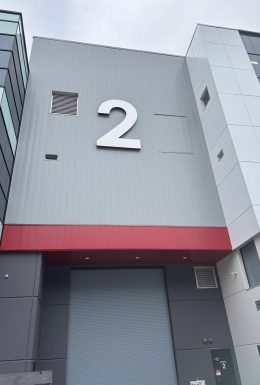

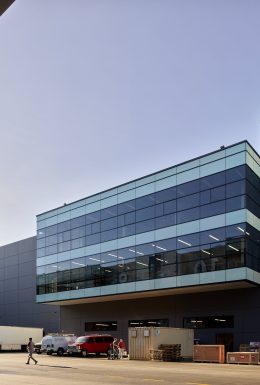

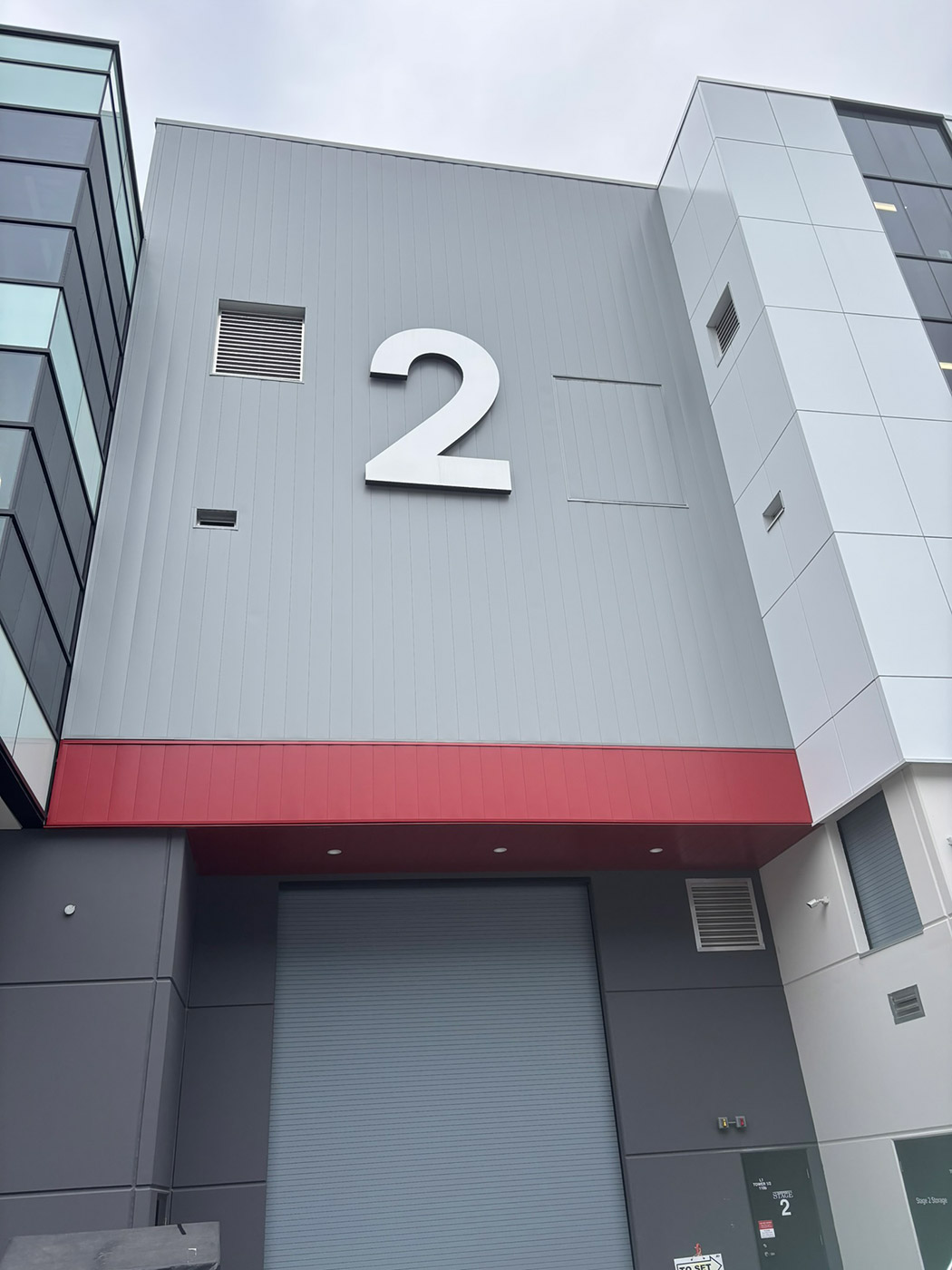

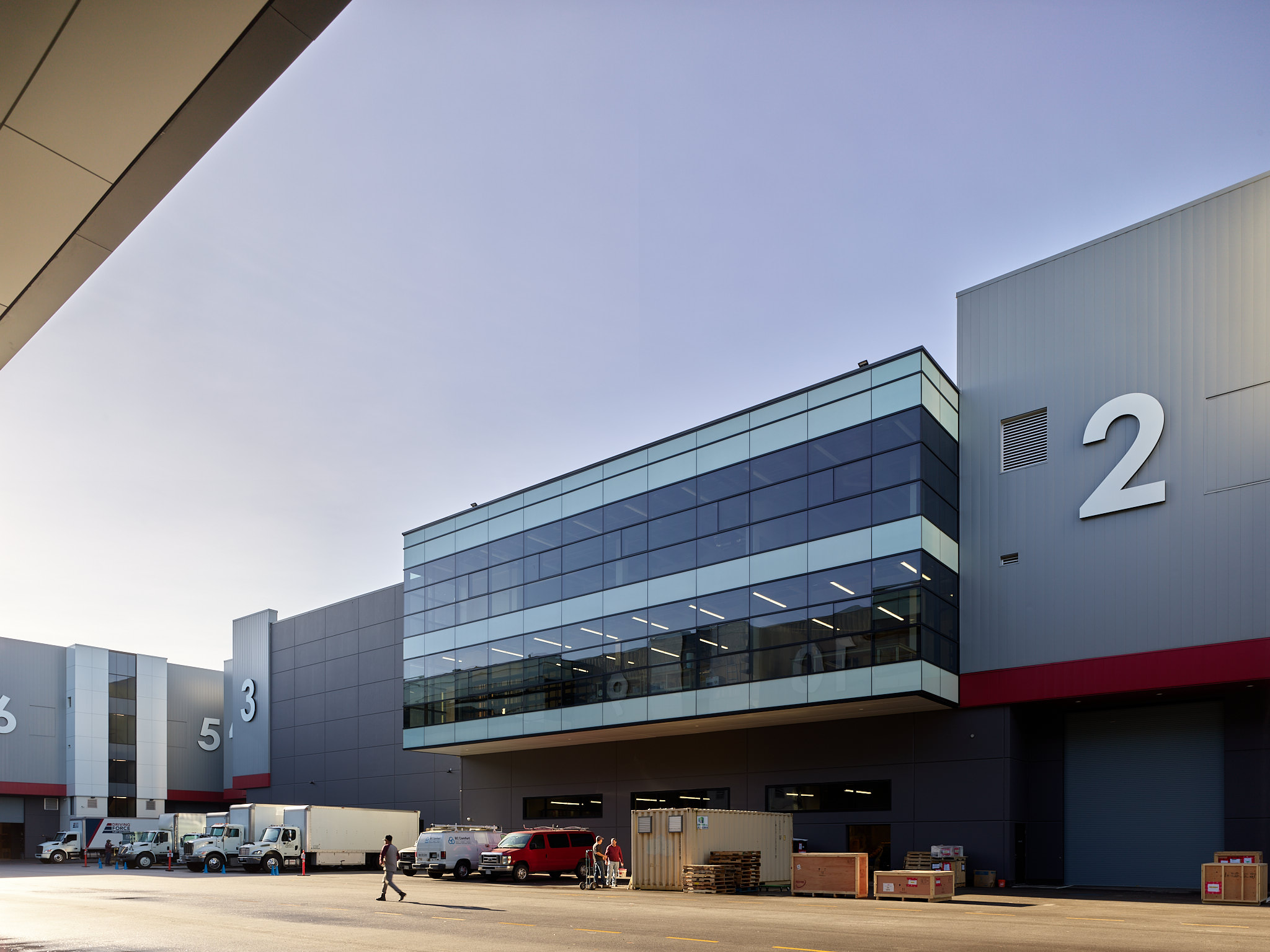

Stage 2 - GALLERY

CLICK AND VIEW FULL IMAGES
