STAGES

Stage 1 8,500 SQ. FT. VIEW STAGE
Stage 2 15,000 SQ. FT. VIEW STAGE
Stage 3 11,000 SQ. FT. VIEW STAGE
Stage 4 15,000 SQ. FT. VIEW STAGE
Stage 5 12,500 SQ. FT. VIEW STAGE
Stage 6 12,500 SQ. FT. VIEW STAGE

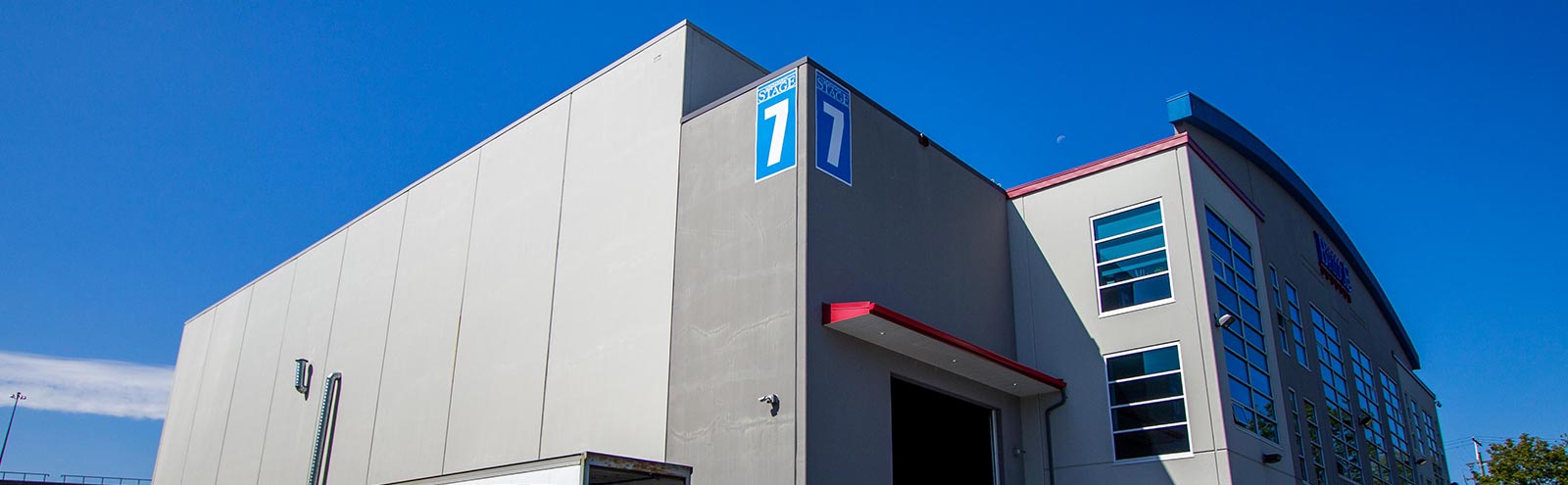

Stage 7 18,000 SQ. FT. VIEW STAGE
Stage 8 16,500 SQ. FT. VIEW STAGE
Stage 9 13,100 SQ. FT. VIEW STAGE
Stage 10 17,000 SQ. FT. VIEW STAGE
Stage 11 17,000 SQ. FT. VIEW STAGE
Stage 12 17,000 SQ. FT. VIEW STAGE
Baby Stage 4,500 SQ. FT. VIEW STAGE

OFFICES

Cafeteria Building VIEW OFFICE

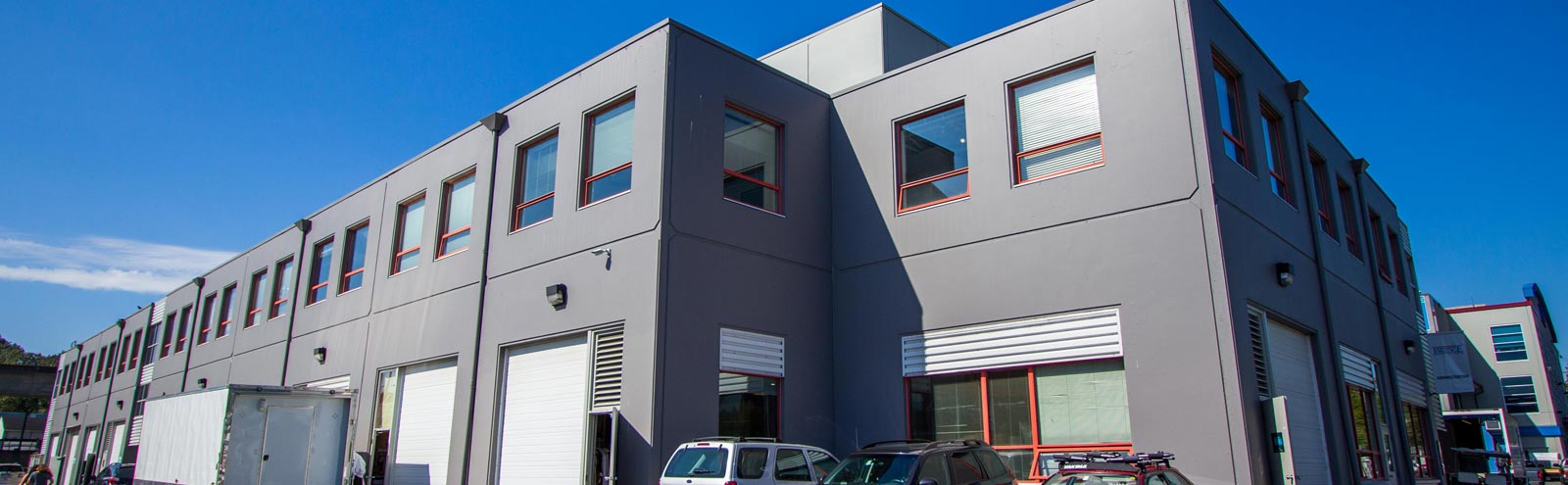

Stage 5/6 Offices VIEW OFFICE

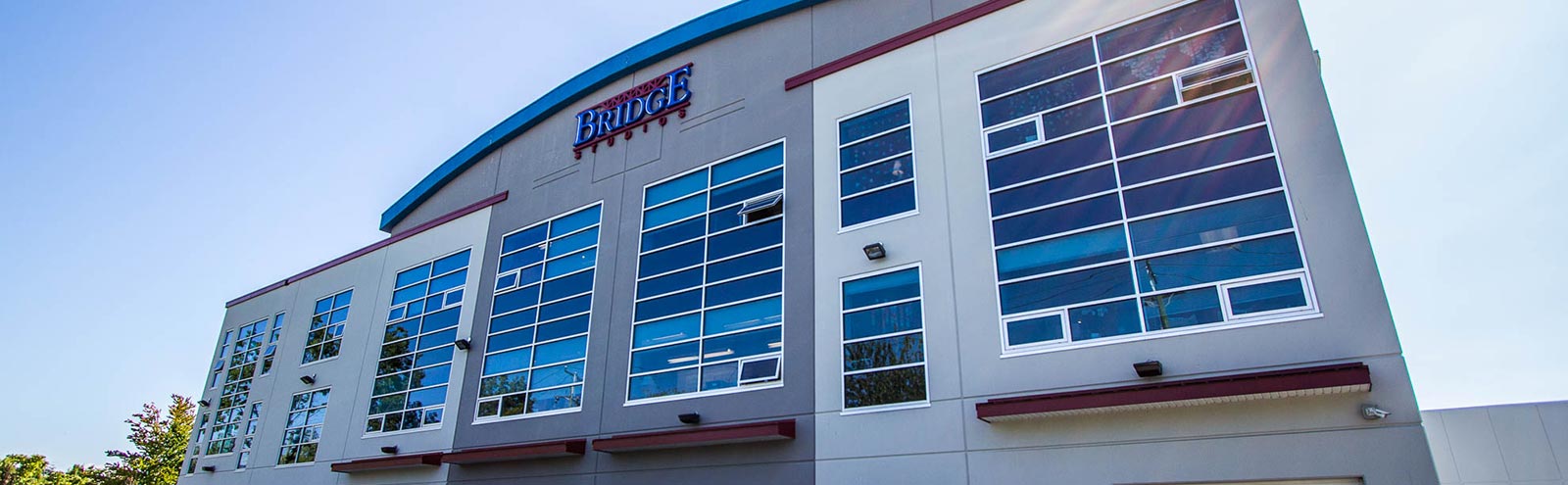

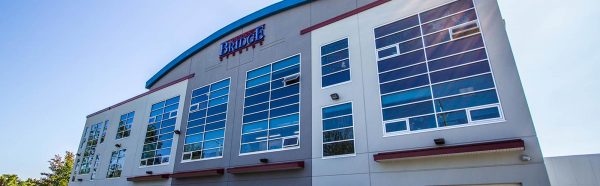

Stage 7/8 Offices VIEW OFFICE
Support VIEW OFFICE
Stages 10 11 12 Support VIEW OFFICE
  • Overview
  • Location
  • Technical
  • Environment
  • Gallery

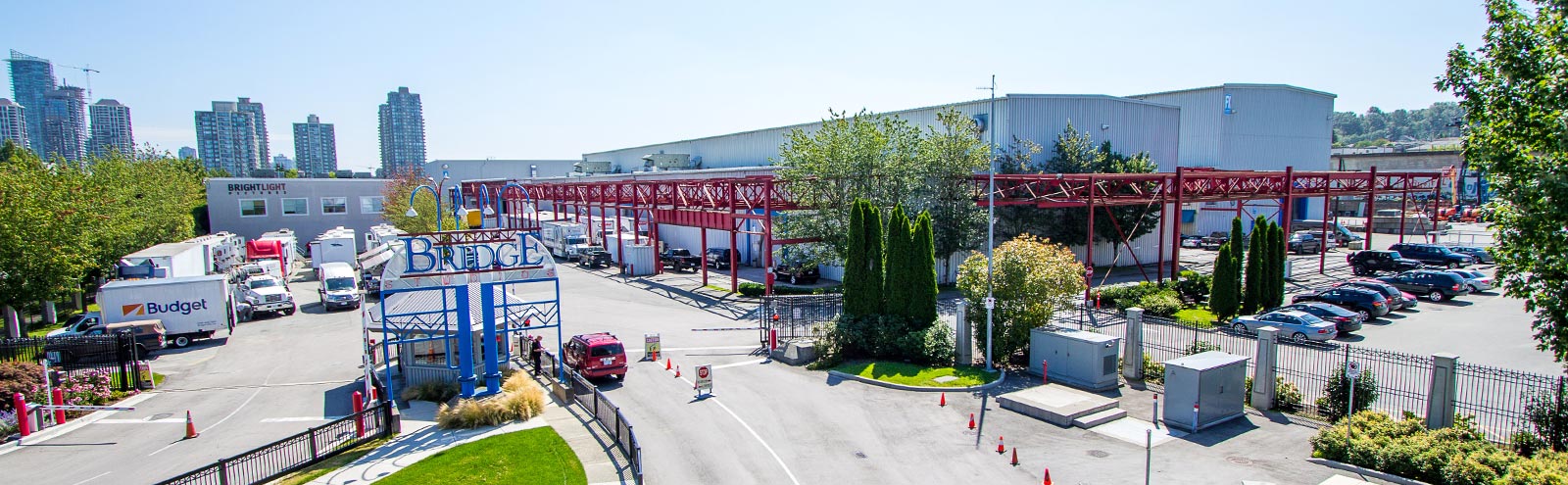

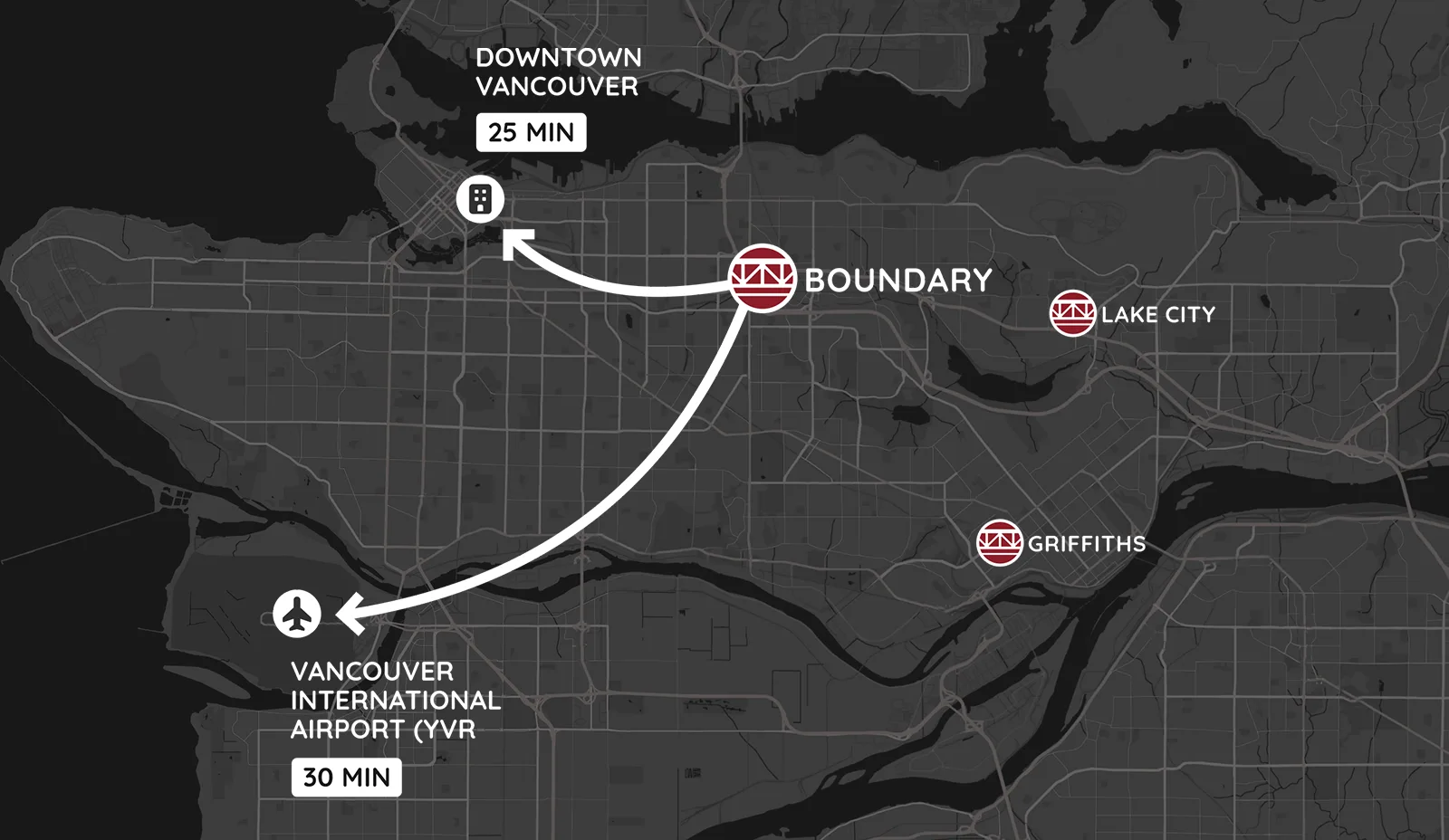

Boundary Studios offers 13 soundstages on 15 acres; 25 minutes from downtown Vancouver and 30 minutes from the airport.



Sound Stages
  • Thirteen sound stages ranging from 4,500 – 18,000 sf
  • Three 50 ft to the underside of the grid Stages
  • Eight 40 ft high stages
  • One stage “The Baby Stage” with a 30 ft high grid

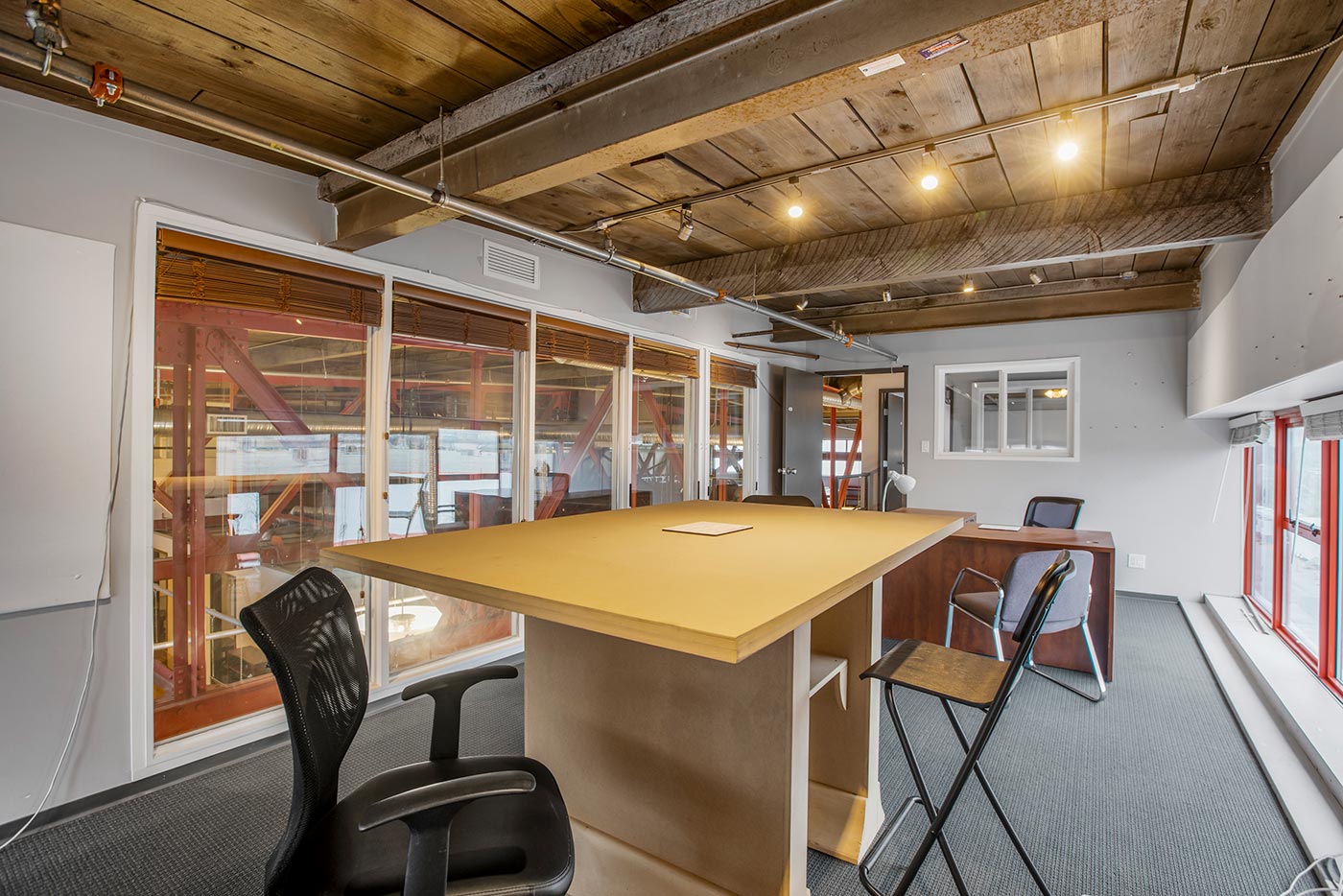

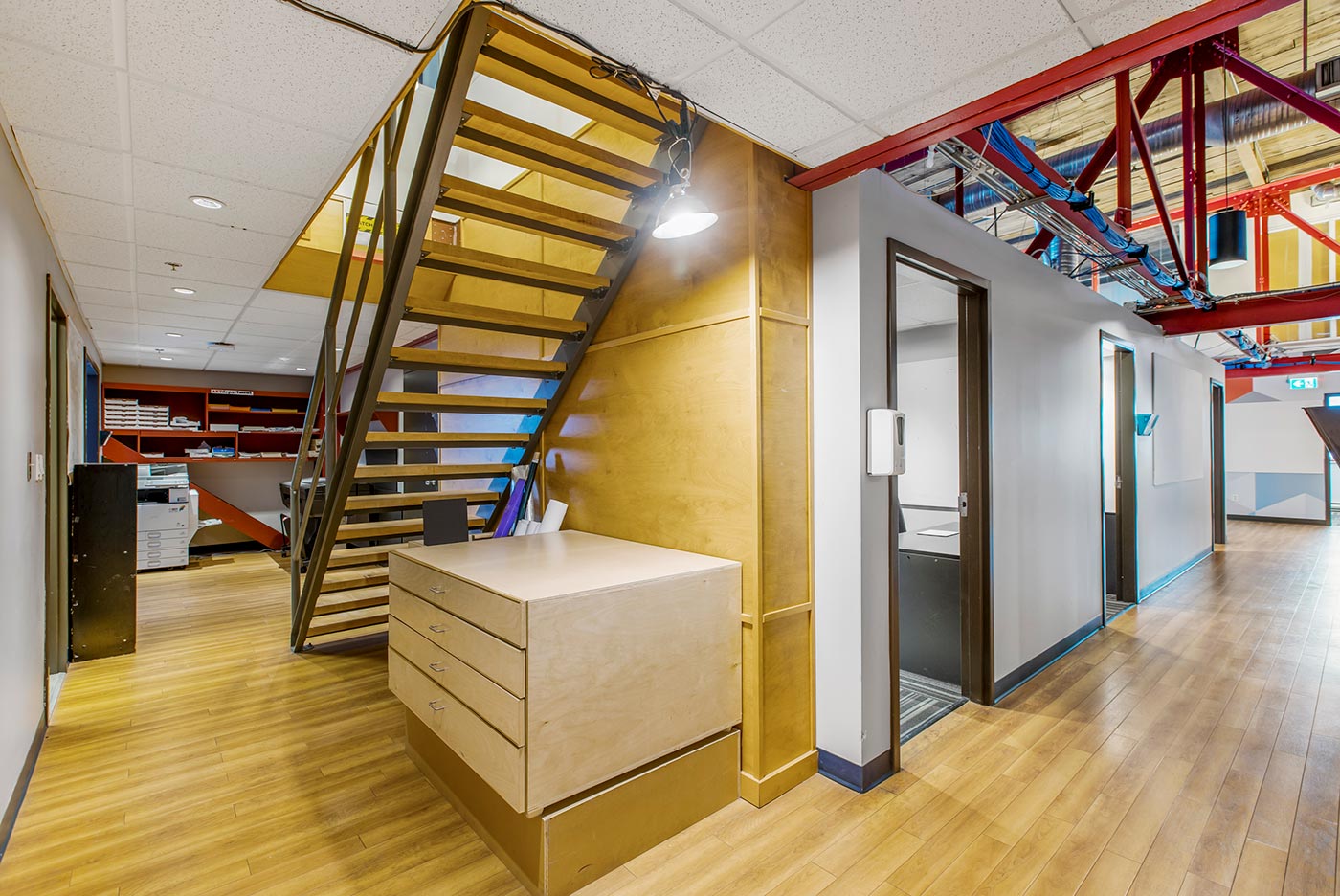

Support Building
  • Mill shops
  • Extensive costumes shops
  • set dec/props areas

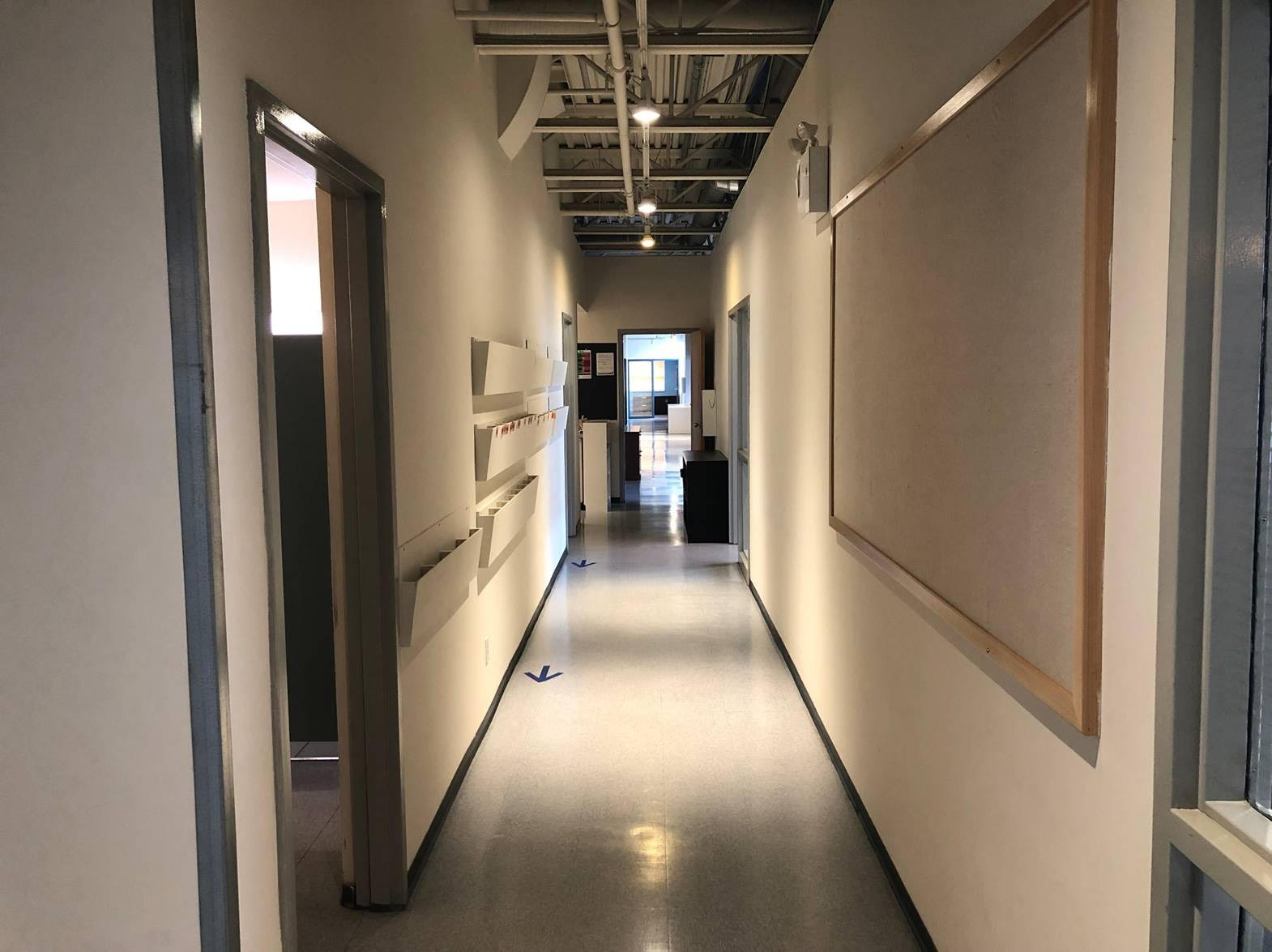

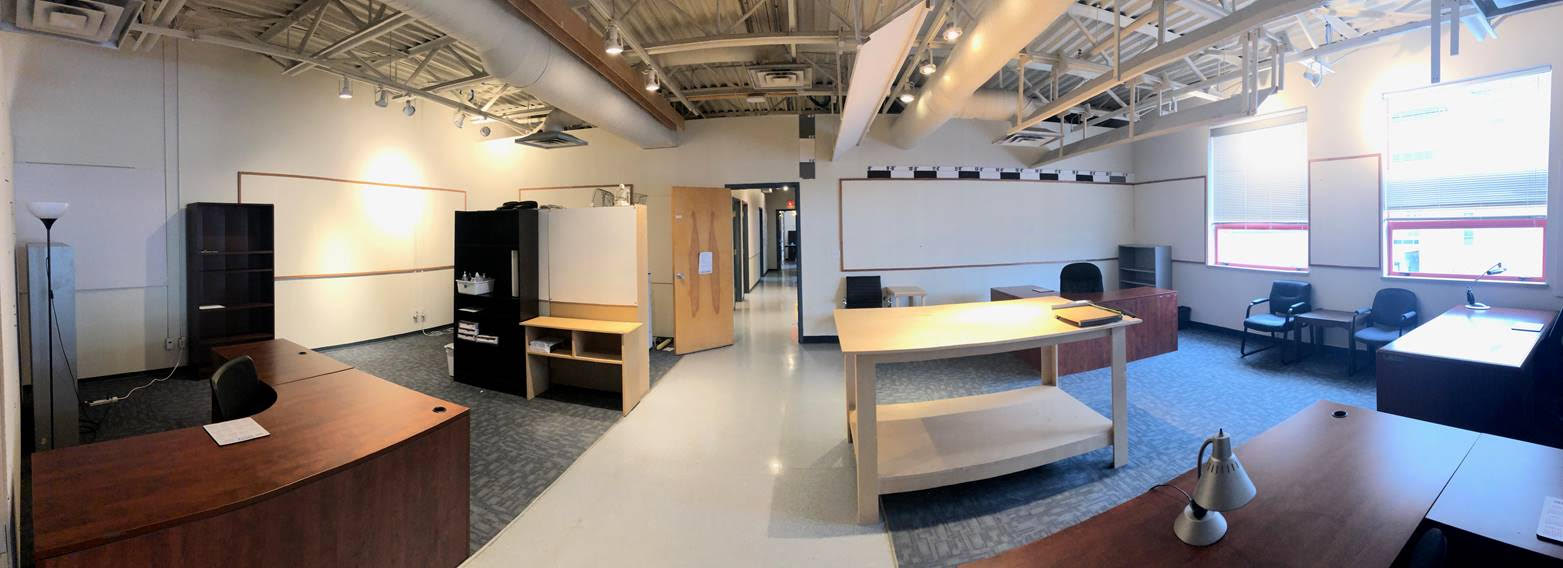

Offices
  • 7 production offices
Lighting/Grip
  • Powered by MBS Equipment Company (MBSE)

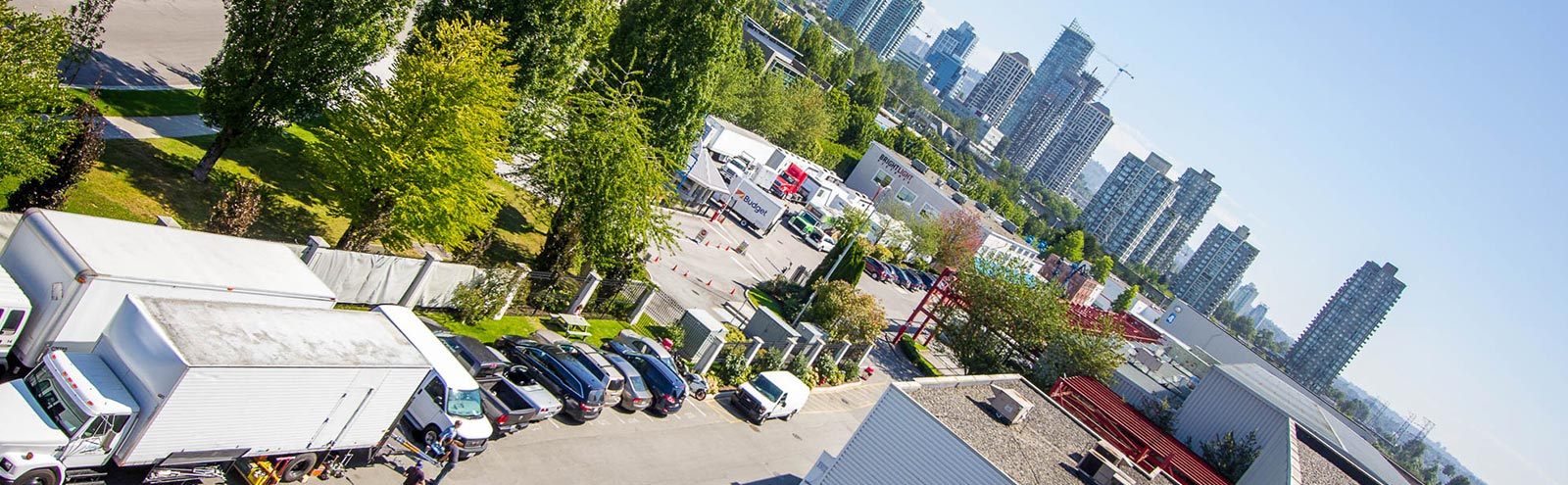

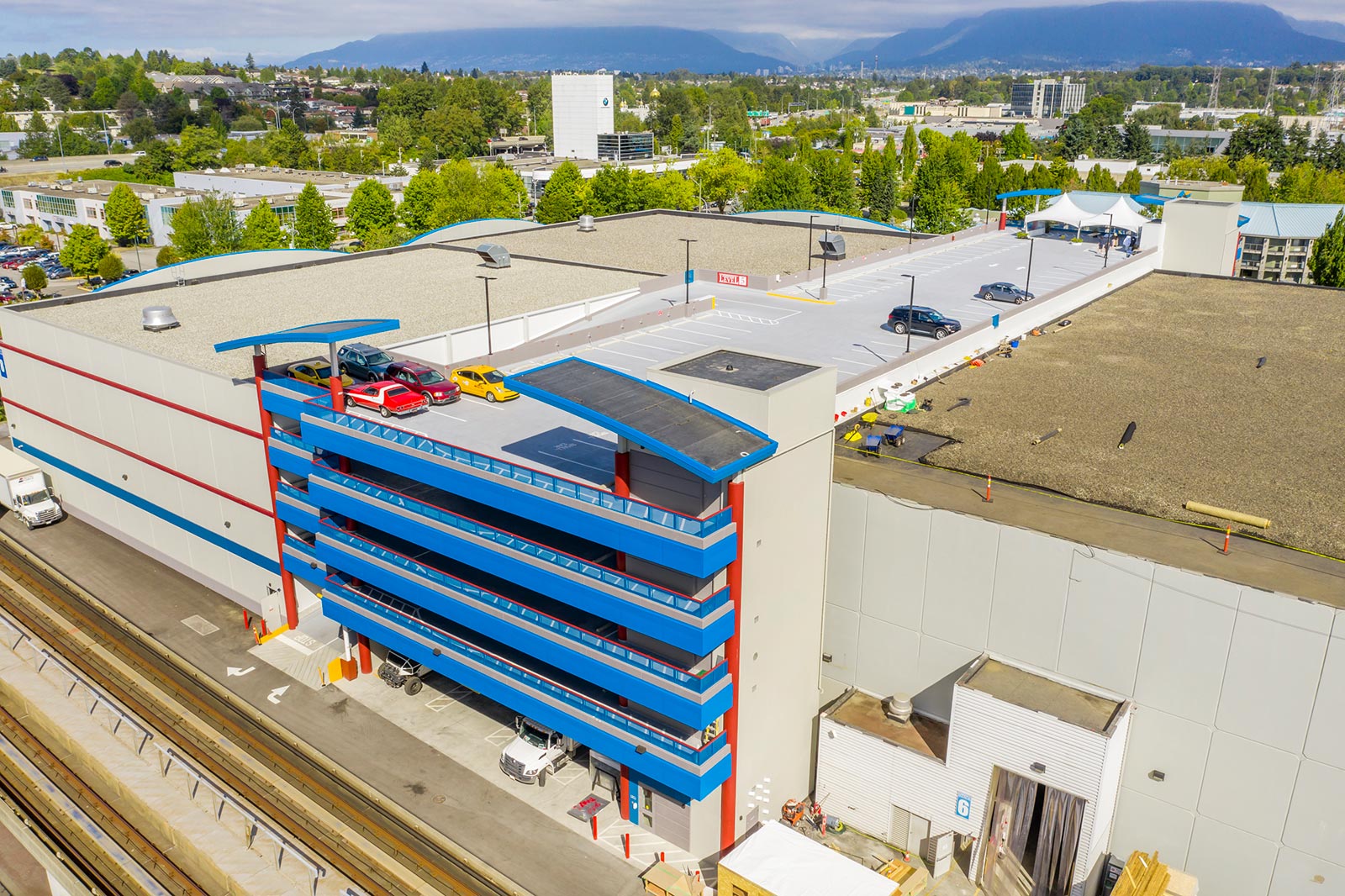

Parking
  • Crew parking of 1,000 vehicles
  • Covered base camp areas
  • 30 EV (electric vehicle) charging ports
Security
  • Fully secure site with CCTV cameras, and access system
  • Entry controlled by card access (personnel and vehicular)
  • Records all entries/exits of the site and each main door in the facility

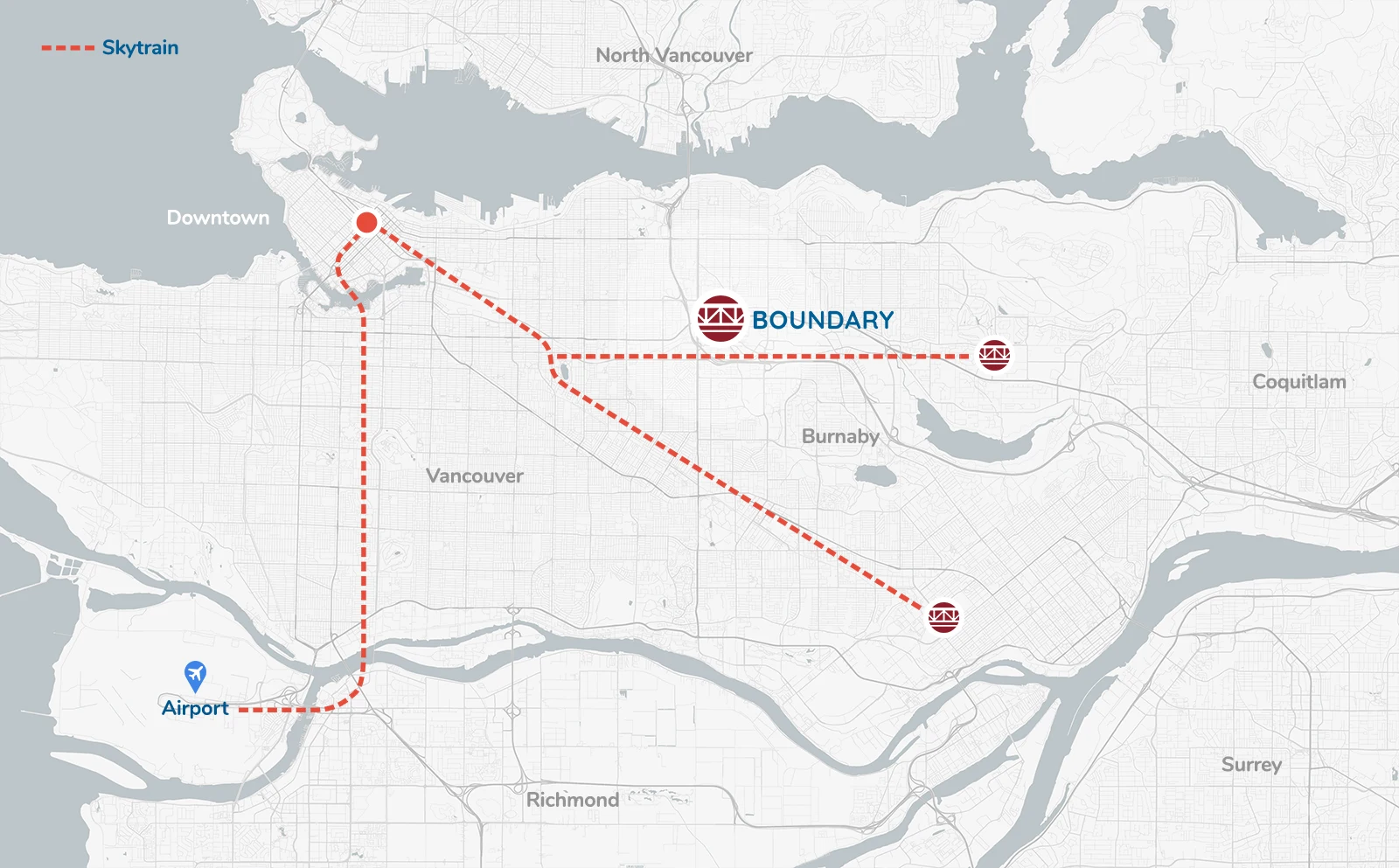

Central location within the Vancouver / Lower Mainland region.

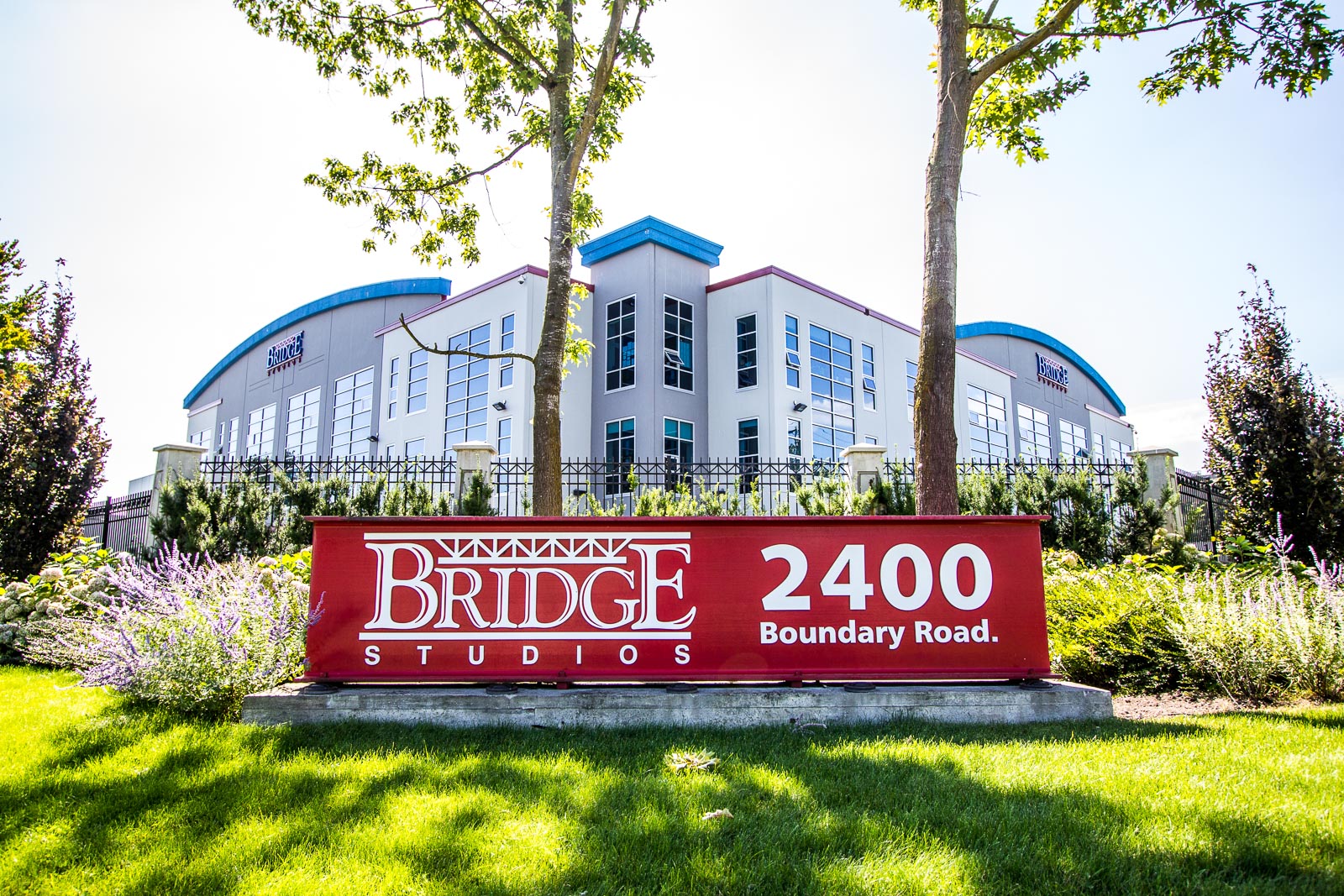

2400 Boundary Road, Burnaby, BC, V5M 3Z3 – View Google Map

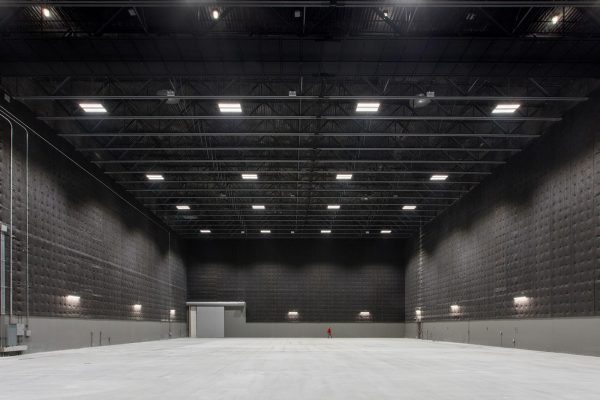

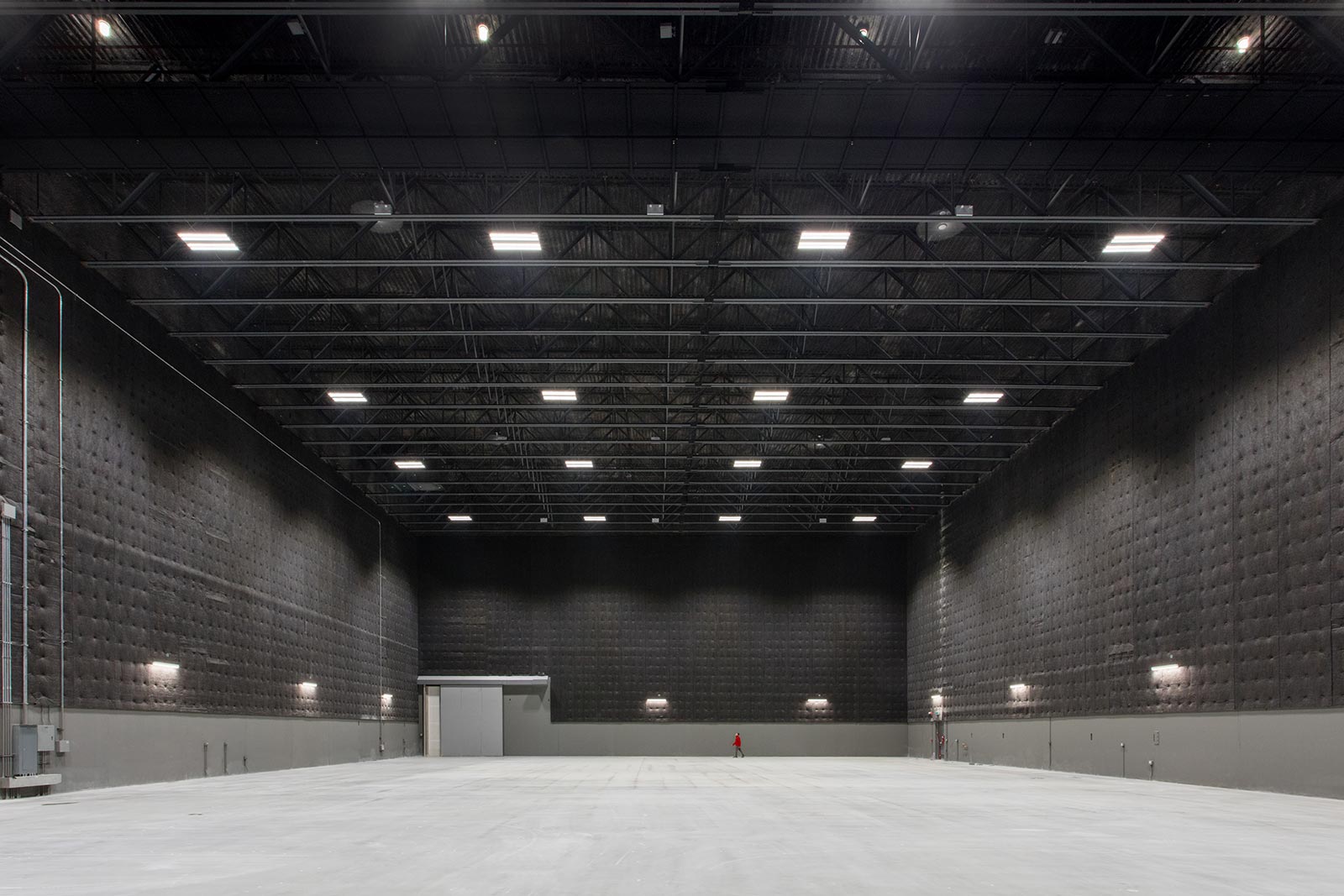

Sound/Acoustics
  • Exceptional soundproofing for control of all exterior sounds
  • Clear span soundstages are constructed from 9 1/2″ thick concrete exterior walls and STC 70 interior demising walls
  • Max interior noise level of 25 dBA (NC 20) weighted decibels
  • Interior walls and ceiling are lined with Insul-Quilt sound absorbing insulation for optimum room acoustics
Connectivity/Internet
  • Wi-fi 6 connectivity throughout stages, support and office spaces
  • Redundant, burstable up to 10Gbps internet connectivity
  • 10Gpbs fiber optic network throughout site
  • VoIP phone system
Electrical
  • Relying on 100% renewable BC Hydro electricity
  • Separate dimmer rooms for each stage
  • Each stage has 4 x 400 amp switches for 1,600 amps each
  • LED lighting throughout facility
  • Low light stumble lights in stage for safe exiting
  • Emergency lighting in grid to allow safe exit/egress for all crew should the power go out
  • Each stage has 4 x 400 amp contactor switched camlocks
  • 1 contactor is located on the stage floor
  • 3 contactors are located in the stage specific dimmer rooms
Bell & Light System
  • Director control system with multiple wall jacks on each of the 4 walls with 100 ft cable to control bell, lights and HVAC system shutdowns
  • All lighting in the facility is low energy LED lighting



Commitment
  • Full waste recycling programs provide minimal waste directed to landfills: plastic, paper, cardboard, organic, and metals.
  • The separate waste/recycling building is designed to make recycling easy and reducing the waste generated by the site. Wood, plastic, paper, glass, metal, and organics can all be separated.
Technical
  • 30 of the personal vehicle parking spots have 220v EV plug ins.
  • Electrical hook-ups for Base Camp trailers to plug right in.
  • LED lighting throughout the vast majority of the facility.

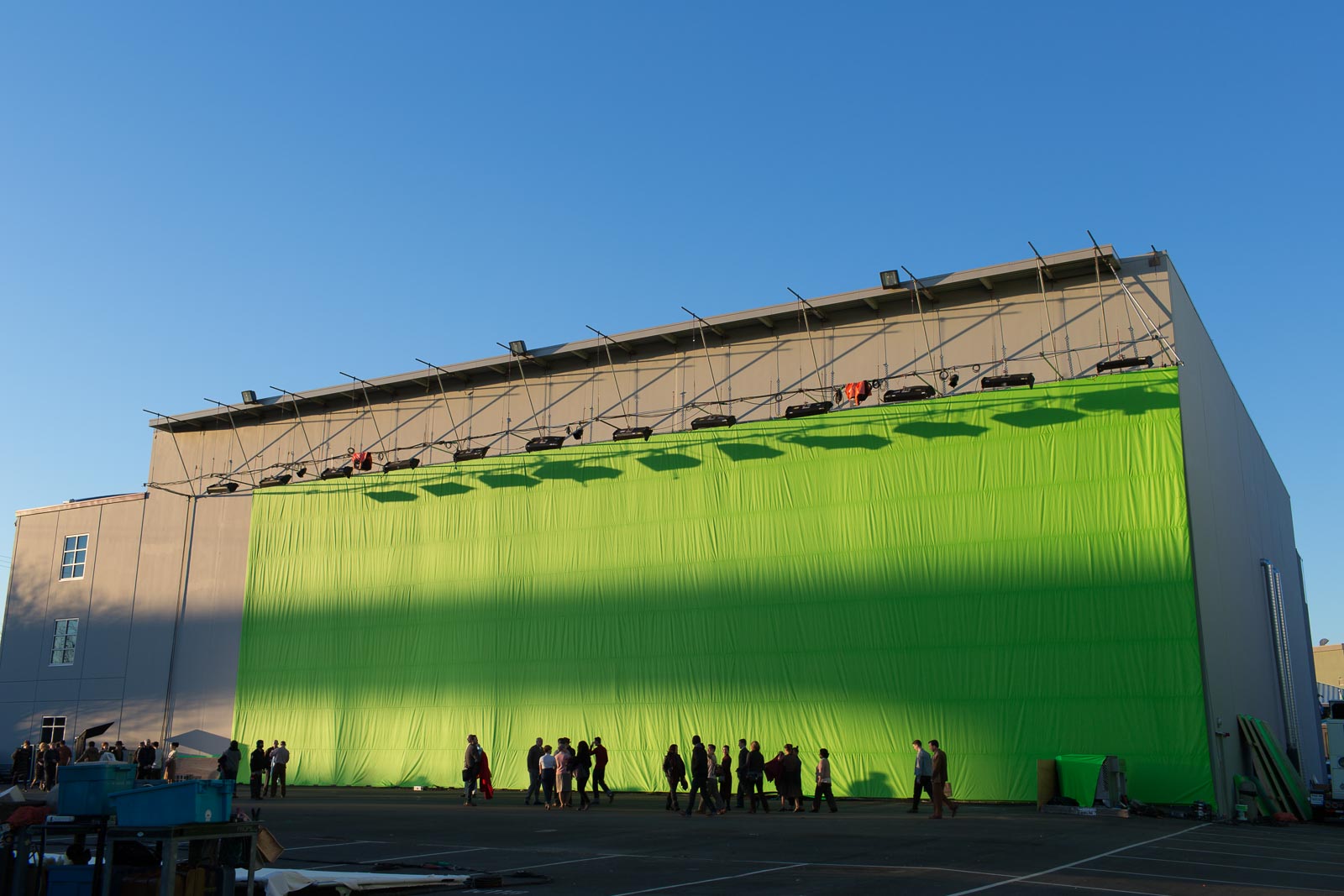

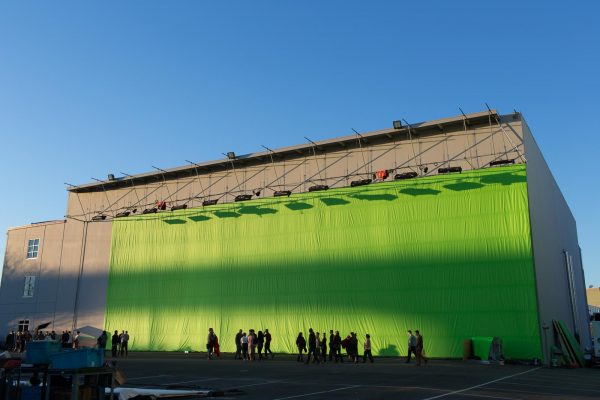

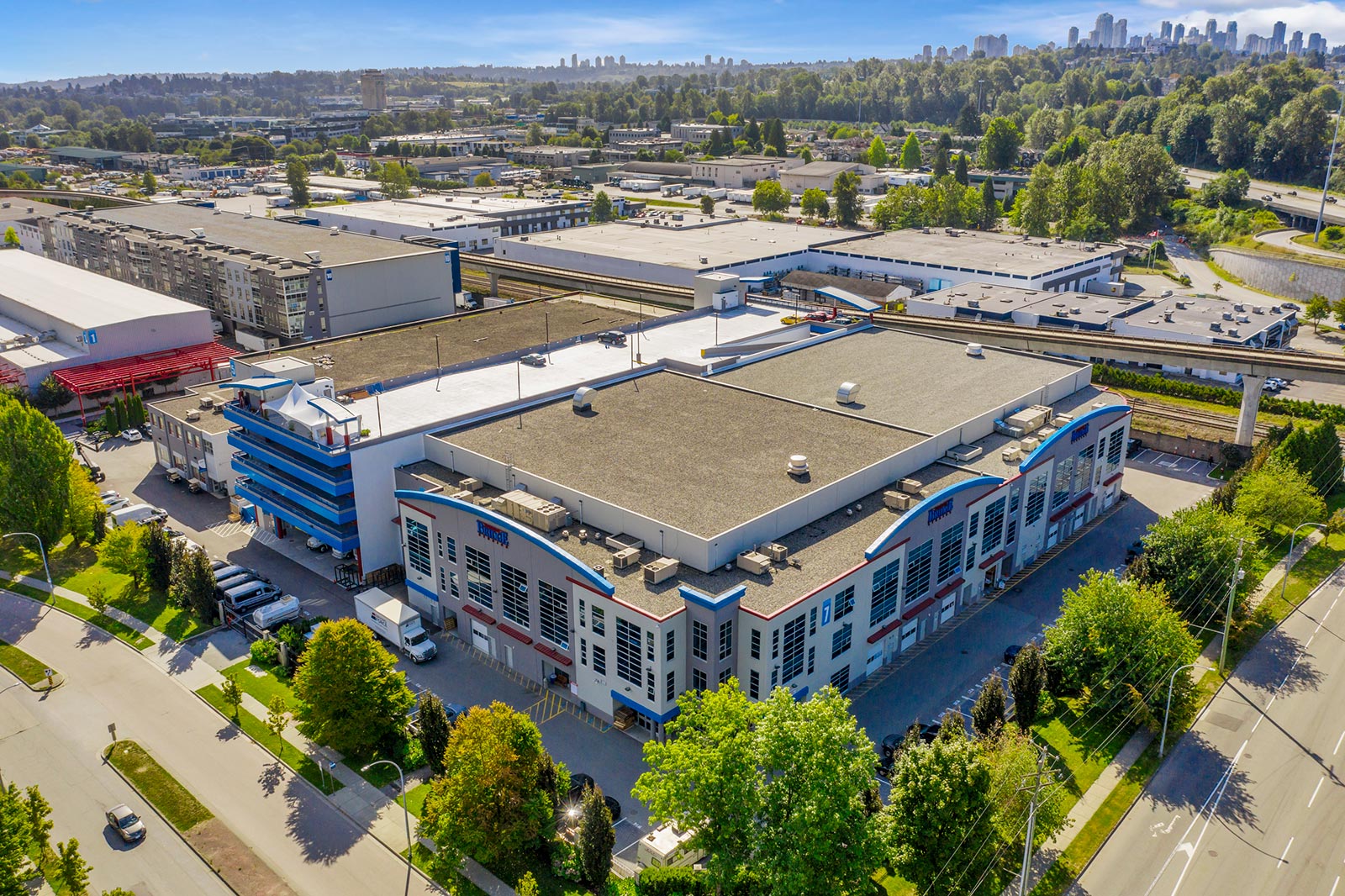

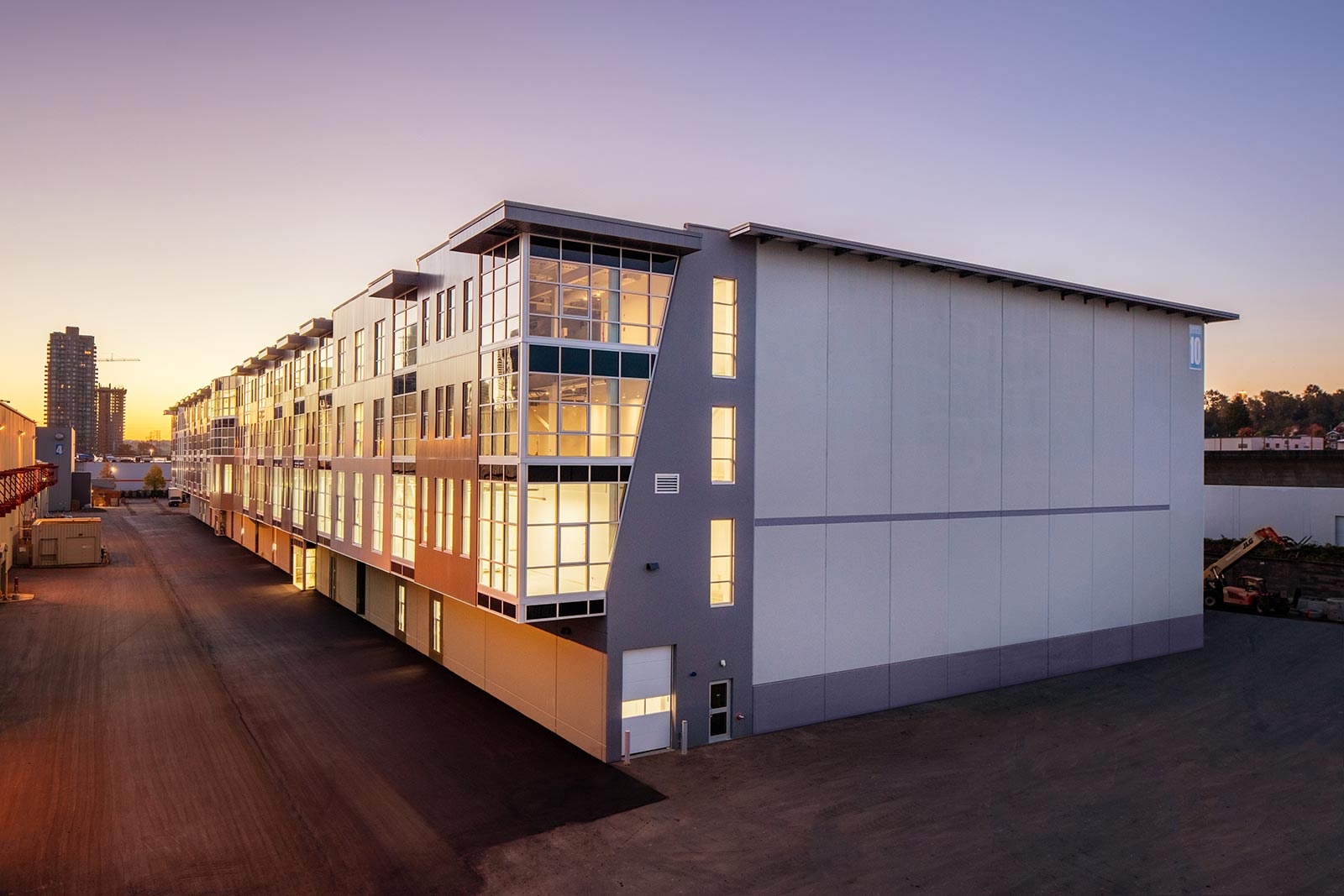

Various renders & photos of Boundary Studios.
Click to view

Please Note: Bridge Studios does not provide public tours
